Waveguide adapter D8-BWC84NK-2992
In Stock 4
Frequency6.57~9.99GHz, 300W, Rect waveguider, BJ84, N
$ 98.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6.57 | ~ | 9.99 | GHz |
| IL | 0.25 | dB | ||
| VSWR | 1.2 |
Other parameters
| Power | 300W Design assurance |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ84 |
| Connector 2 | N-K |
| Flange model | Non-standard flange |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB |
| 6 | 1.43 | -0.2 |
| 6.36 | 1.24 | -0.08 |
| 6.71 | 1.15 | -0.06 |
| 7.07 | 1.07 | -0.07 |
| 7.43 | 1.12 | -0.06 |
| 7.79 | 1.19 | -0.05 |
| 8.14 | 1.17 | -0.05 |
| 8.5 | 1.11 | -0.05 |
| 8.86 | 1.1 | -0.06 |
| 9.21 | 1.13 | -0.1 |
| 9.57 | 1.16 | -0.06 |
| 9.93 | 1.19 | -0.09 |
| 10.29 | 1.14 | -0.1 |
| 10.64 | 1.26 | -0.07 |
| 11 | 1.56 | -0.05 |

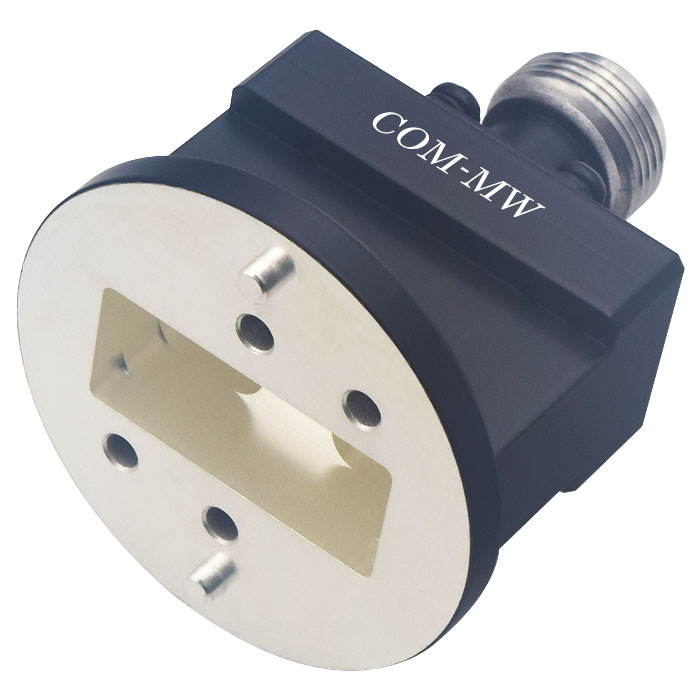

Reference picture

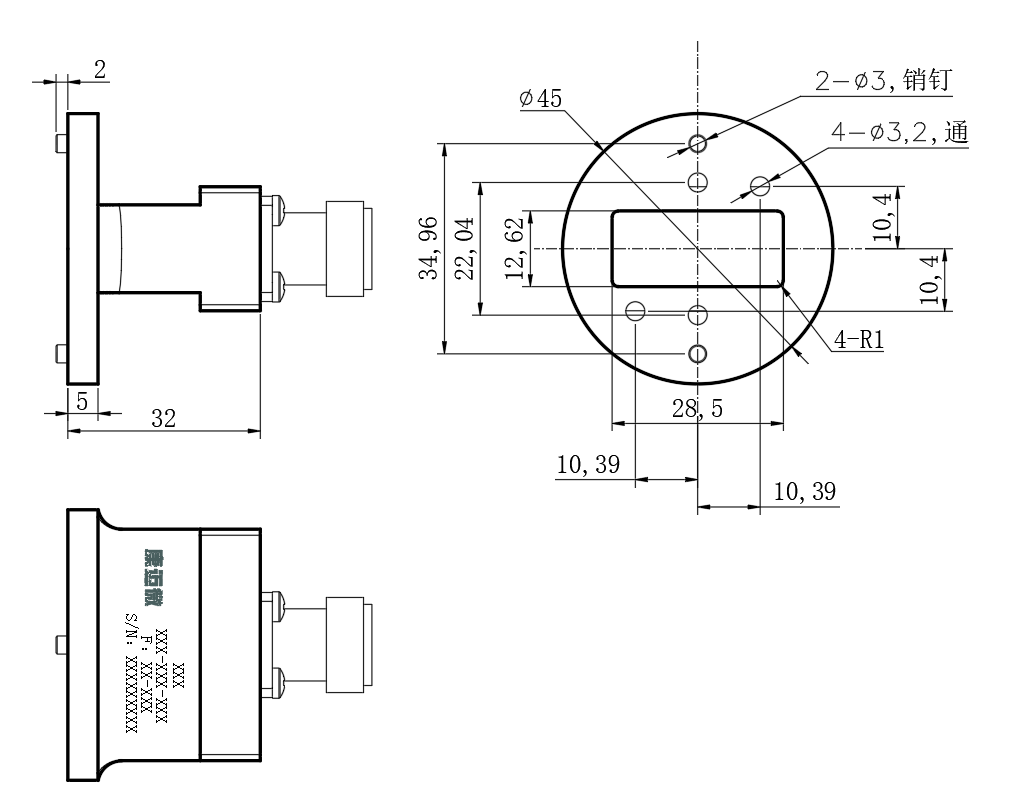

Configuration(mm)

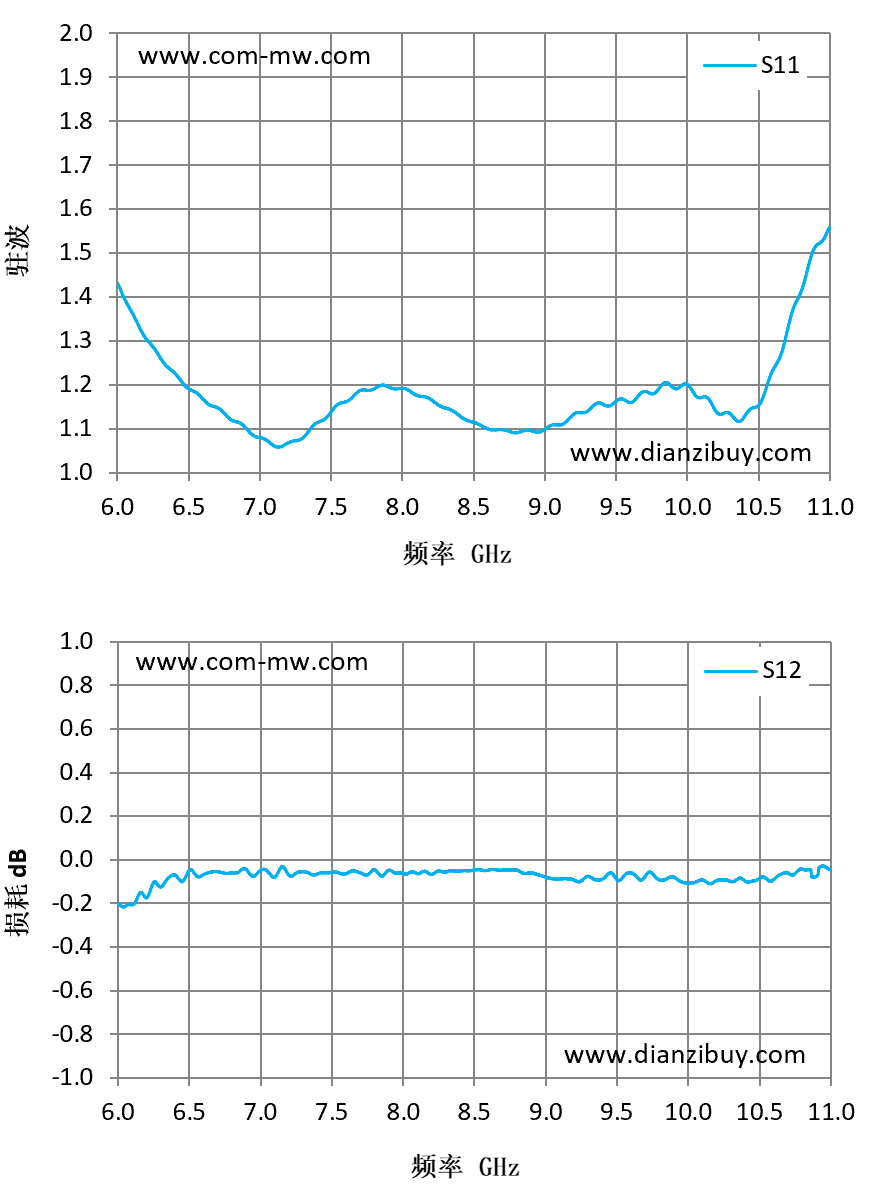

Typical test curve
