Phase shifter DPS8-800-3200-2919
In Stock 4
Frequency800~3200MHz, 6 bits, SMA
$ 478.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 800 | ~ | 3200 | MHz |
| IL | 16 | 20 | dB | |
| VSWR | 1.4 | 1.8 | ||
| Phase shift RMS | 4 | 7 | ° | |
| Parasitic AM | ±1 | ±1.5 | dB |
Other parameters
| Phase shift bits | 6 bits |
| Impedance | 50Ω |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Power Capacity | 20dBm Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Voltage | -5V |
| Current | 20mA |
Truth table
| Phase shifting | P1 | P2 | P3 | P4 | P5 | P6 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| -5.625° | 1 | 0 | 0 | 0 | 0 | 0 |
| -11.25° | 0 | 1 | 0 | 0 | 0 | 0 |
| -22.5° | 0 | 0 | 1 | 0 | 0 | 0 |
| -45° | 0 | 0 | 0 | 1 | 0 | 0 |
| -90° | 0 | 0 | 0 | 0 | 1 | 0 |
| -180° | 0 | 0 | 0 | 0 | 0 | 1 |
| -354.375° | 1 | 1 | 1 | 1 | 1 | 1 |
Typical test data
| Frequency(MHz) | 400 | 914 | 1429 | 1943 | 2457 | 2971 | 3486 | 4000 |
| S11 | 3.2 | 1.4 | 1.2 | 1.1 | 1.2 | 1.3 | 1.3 | 2.1 |
| S22 | 1.9 | 1.1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.4 | 3.6 |
| S21 | -29.3 | -11.4 | -10.7 | -12.3 | -14.8 | -17.3 | -20.8 | -32.3 |
| Phase shift RMS | 77.6 | 3 | 4.1 | 3.4 | 3.5 | 3.4 | 4 | 66.8 |
| 0° | 0.1 | 0 | 0 | 0 | 0 | 0 | 0.1 | 0.1 |
| ‘-5.625° | -10.7 | -5.5 | -5.1 | -5.1 | -5.3 | -5.6 | -5.3 | -3.7 |
| ’-11.25 | -19.6 | -12 | -10.9 | -11.1 | -11.6 | -12 | -13.6 | -5.6 |
| ‘-22.5 | -30.3 | -21.9 | -22.1 | -23.1 | -22.8 | -22.1 | -23.6 | -37.9 |
| ‘-45° | -64.4 | -43.5 | -43 | -44.1 | -44.8 | -44.1 | -43.4 | -54.2 |
| ‘-90° | -145 | -88.3 | -89.7 | -93 | -91.8 | -88.3 | -88 | -106 |
| ‘-180° | -276 | -179 | -177 | -183 | -183 | -179 | -186 | -292 |
| ‘-354.375 | -182 | -352 | -347 | -358 | -360 | -349 | -353 | -489 |

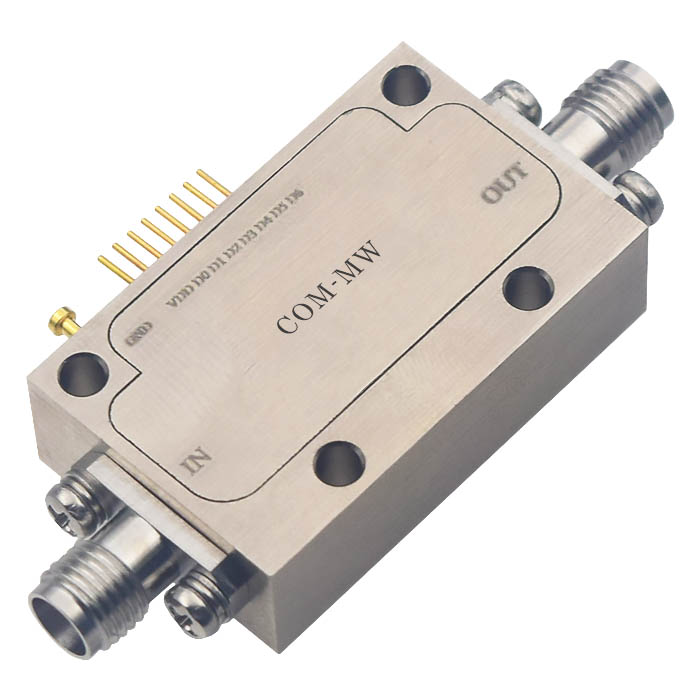

Reference picture

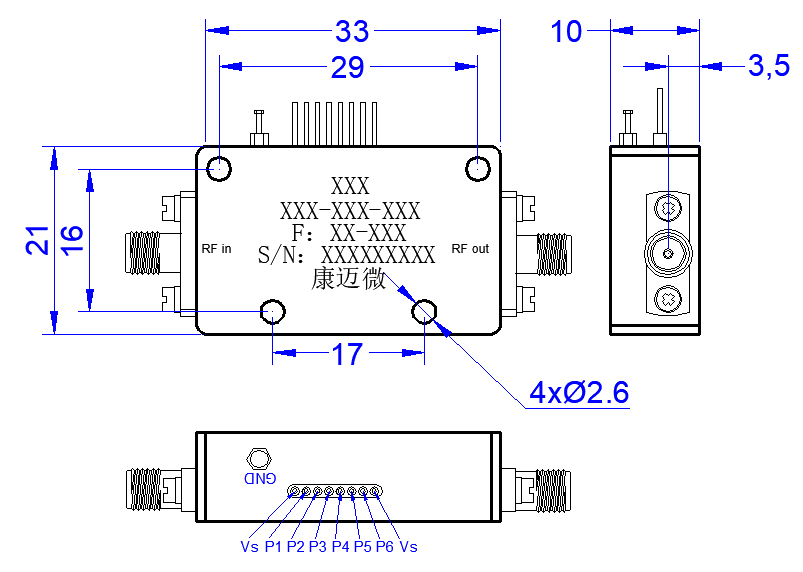

Configuration(mm)

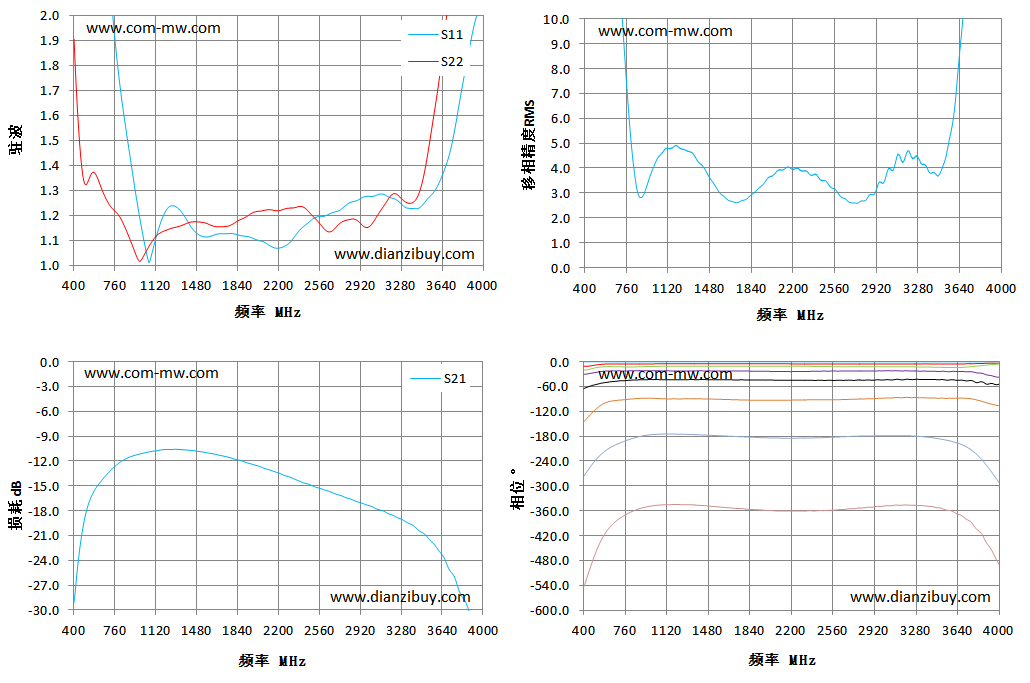

Typical test curve
Control voltage
| Low (0) | 0V | / |
| High (1) | +5V | / |
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
