Planar spiral antenna ZLX7-Y2-18G-1427
Frequency2~18GHz, Gain2dBi, Right-handed circular polarization, SMA-K
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
The planar spiral antenna has the characteristics of ultra bandwidth, low voltage standing wave ratio, stable performance, compact structure, and light weight. Customized right or left circularly polarized planar spiral antennas according to customer requirements.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 2 | dBi | ||
| VSWR | 2 | |||
| AR | 2 | dB |
Other parameters
| Polarization | Right-handed circular polarization |
| Power Capacity | 1W Design assurance |
| Connector | SMA-K |
| Connector material | Housing 304 stainless steel |
| Outline size | 57*57*37.5mm |
| Estimated weight | 180g |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |

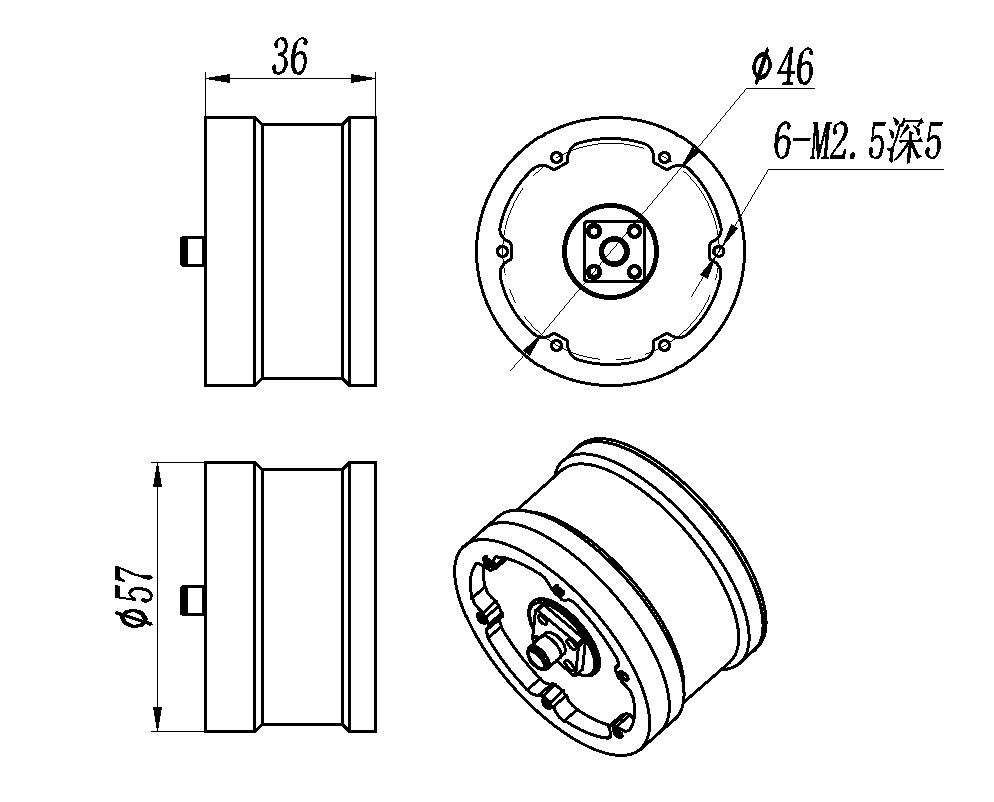

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

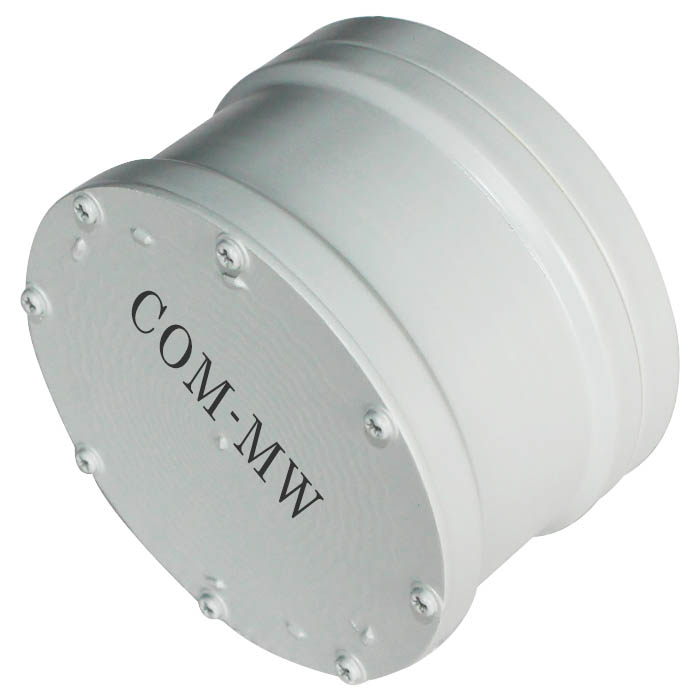

Reference picture

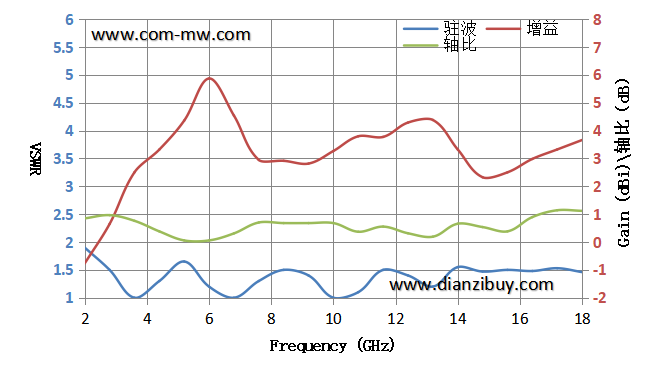

Typical test curve
Typical antenna pattern
