Filter ZBF13-L525-50-1522
In Stock 9
Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMD
$ 25.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 500 | ~ | 550 | MHz |
| Passband IL | / | / | 3.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Rejection | DC-450 | MHz≥ | 40 | dB | ||
| Rejection | 600-1500 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.6 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power | 2W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency MHz | S11 VSWR | S12 IL (dB) | S12 Delay (ns) |
| 450 | 36.75 | -54.42 | -15.11 |
| 461 | 21.47 | -40.5 | -27.4 |
| 471 | 12.92 | -25.05 | 21.49 |
| 482 | 6.54 | -9.5 | 28.66 |
| 493 | 2.86 | -3.55 | 20.16 |
| 504 | 1.5 | -2.3 | 15.59 |
| 514 | 1.35 | -2.06 | 13.35 |
| 525 | 1.27 | -2.03 | 12.76 |
| 536 | 1.29 | -2.1 | 13.11 |
| 546 | 1.25 | -2.31 | 14.09 |
| 557 | 1.81 | -2.98 | 16.78 |
| 568 | 3.76 | -5.42 | 23.34 |
| 579 | 7.1 | -14.04 | 30.61 |
| 589 | 11.32 | -28.21 | 16.11 |
| 600 | 17.52 | -44.93 | 17.15 |

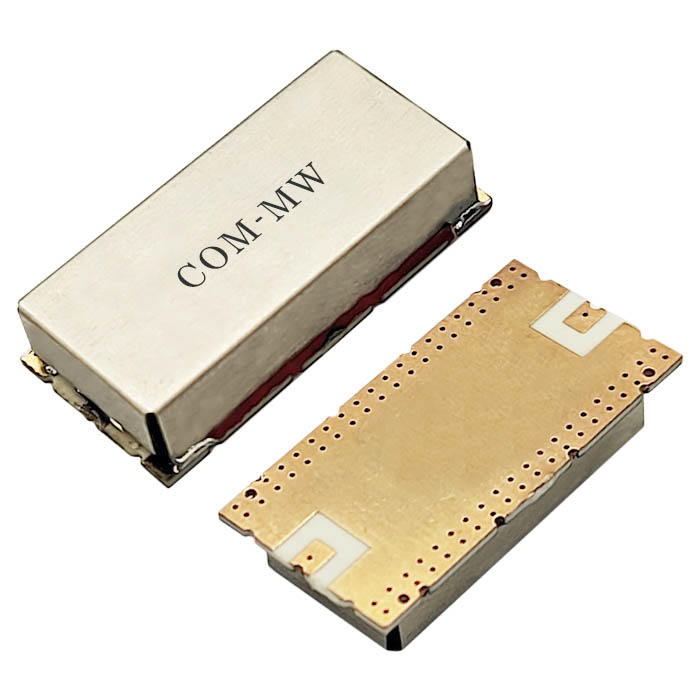

Reference picture

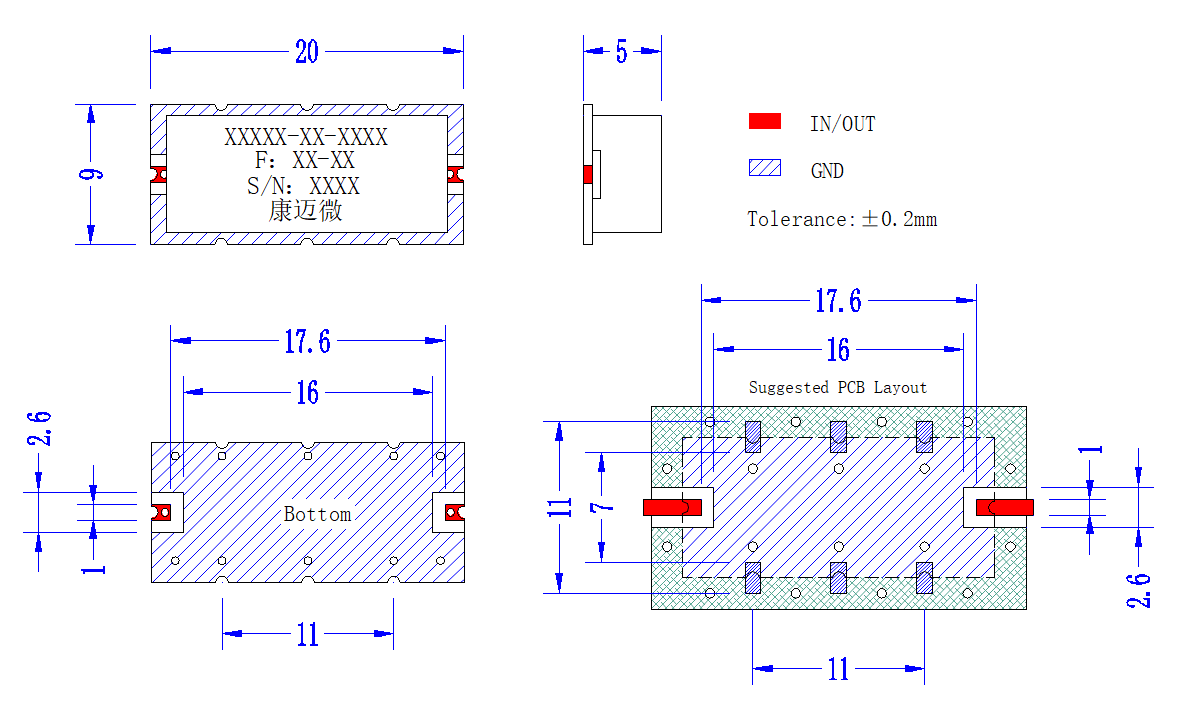

Configuration(mm)

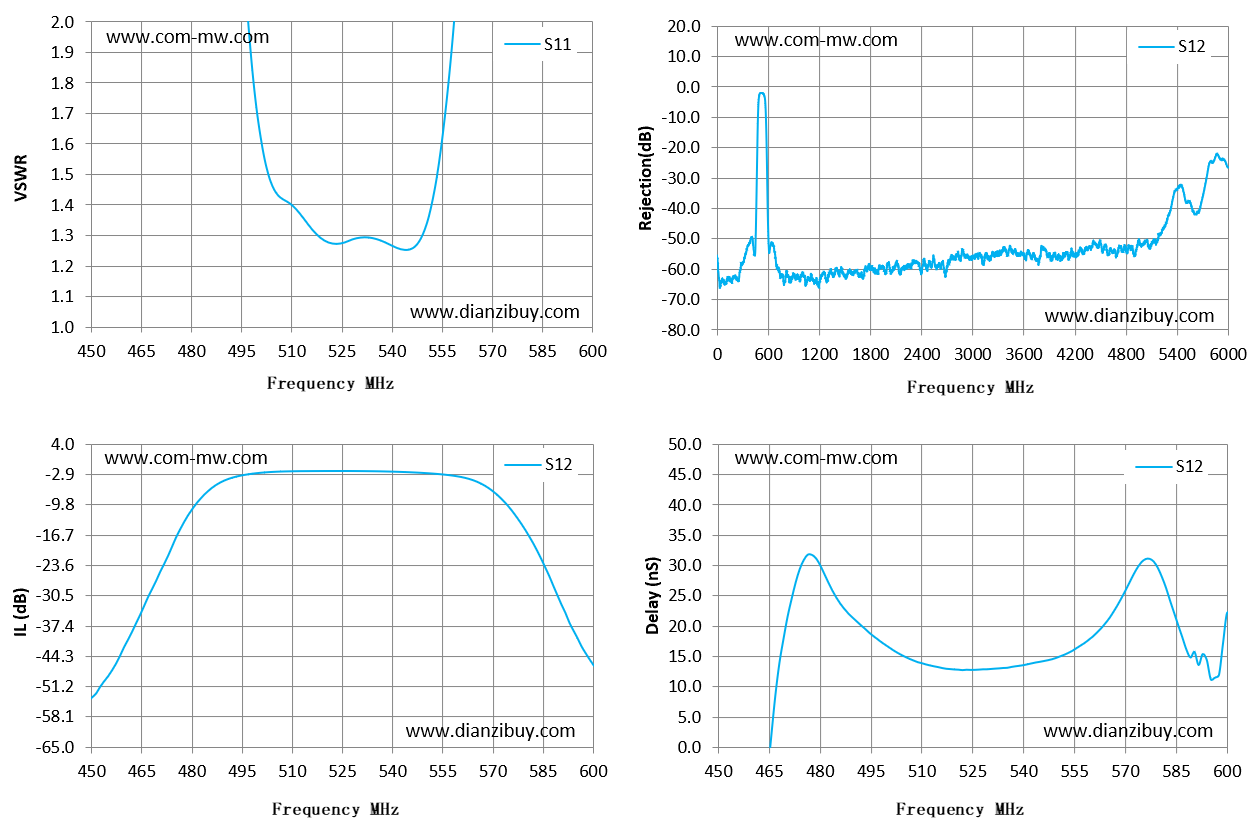

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 190 ℃ reflow soldering |
