LP Antenna ZDS7-2-18G-826
Frequency2~18GHz, Gain5dBi, Linear polarization, SMA-K
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
It has characteristics such as medium gain, wide operating frequency band, and good performance consistency within the operating frequency band.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2 | ~ | 18 | GHz |
| Gain | 5 | dBi | ||
| VSWR | 2.0 |
Other parameters
| Polarization | Linear polarization |
| Power Capacity | 20W Design assurance |
| Connector | SMA-K |
| Outline size | 117*78*20mm Without ports |
| Estimated weight | 70g |
| Surface | Grey |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -40~+55℃ Design assurance |

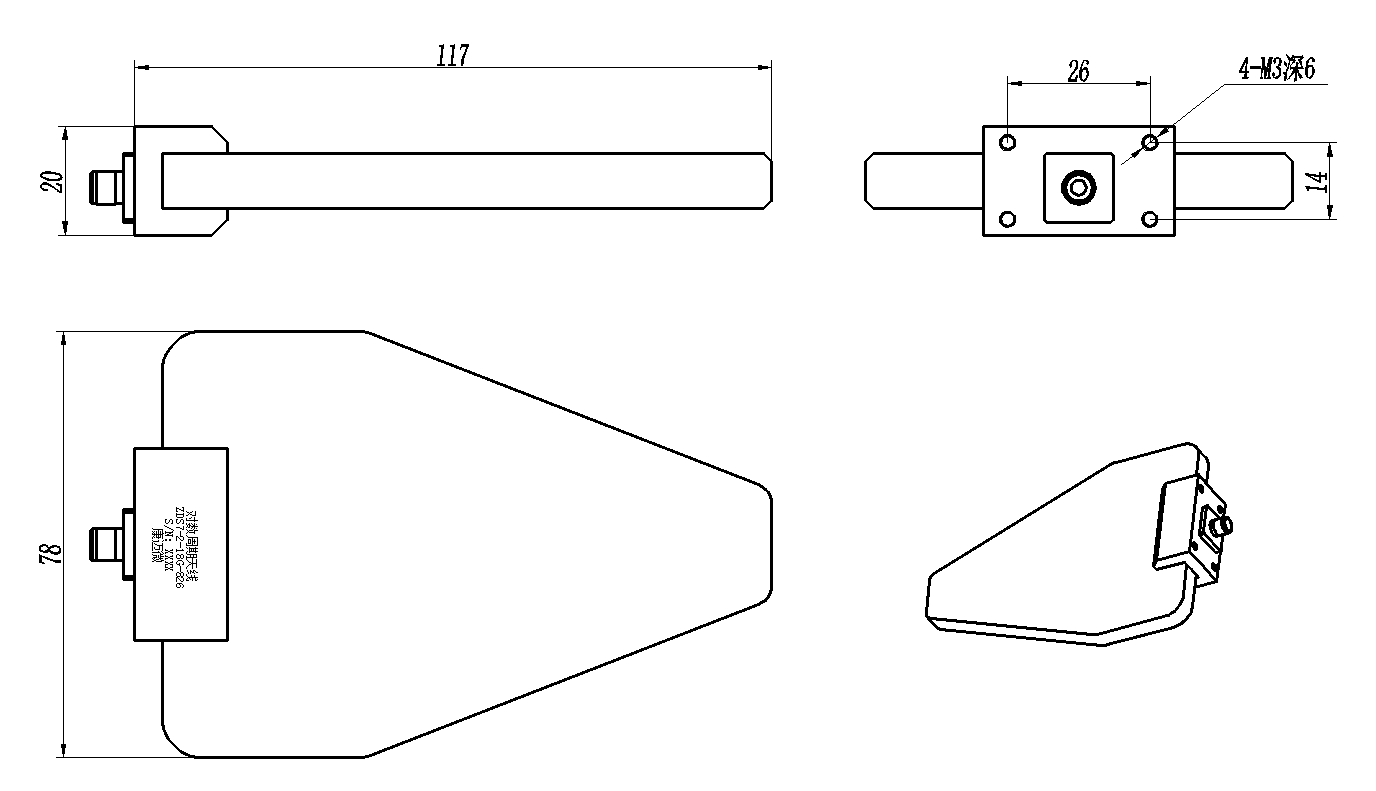

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

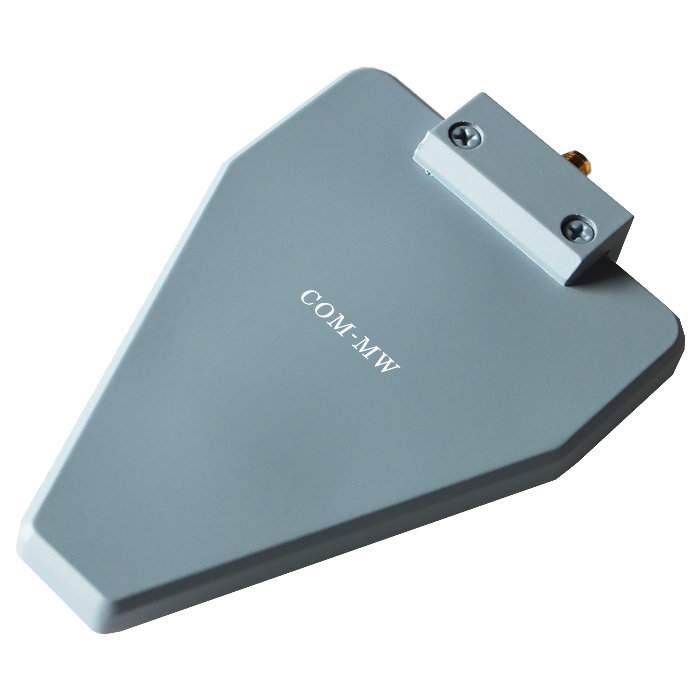

Reference picture

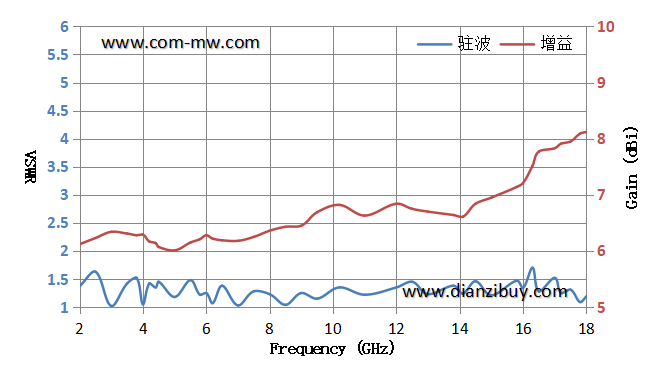

Typical test curve

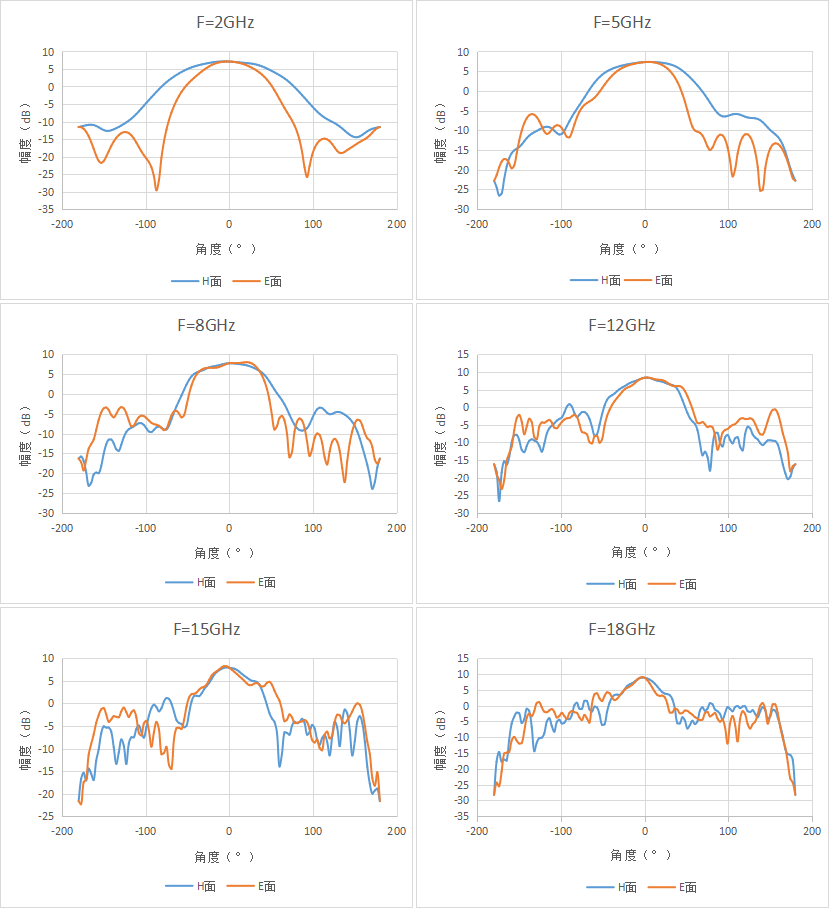

Typical antenna pattern
