Coupler ZDC8-50MC6-18G-2192
In Stock 11
6000~18000MHz, Coupling50dB, N, SMA, 200W
$ 282.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6000 | ~ | 18000 | MHz |
| IL | 0.4 | 0.8 | dB | |
| Coupling | 48.5 | 50 | 51.5 | dB |
| Directivity | 15 | dB | ||
| Main line VSWR | 1.35 | |||
| Coupled line VSWR | 1.5 |
Other parameters
| Through port | N -K |
| Coupling port | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 200W Design assurance |
| Operation Temp. | -55~+75℃ Design assurance |
Port Definition
| Input port | 1 | 2 |
| Output port | 2 | 1 |
| Coupling port | 3 | 4 |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB | S14 ISO dB | S13 coupling | S24 Coupling |
| 5 | 1.13 | -0.17 | -86 | -50.65 | -50.22 |
| 6 | 1.16 | -0.28 | -74.67 | -49.96 | -49.54 |
| 7 | 1.08 | -0.24 | -70.87 | -49.5 | -49.05 |
| 8 | 1.05 | -0.25 | -71.01 | -49.32 | -48.83 |
| 9 | 1.08 | -0.26 | -73.06 | -49.39 | -48.88 |
| 10 | 1.03 | -0.28 | -71.5 | -49.56 | -49.02 |
| 11 | 1.09 | -0.27 | -69.21 | -49.67 | -49.17 |
| 12 | 1.05 | -0.24 | -71.45 | -49.64 | -49.16 |
| 13 | 1.05 | -0.23 | -83.07 | -49.68 | -49.11 |
| 14 | 1.06 | -0.22 | -72.28 | -49.49 | -48.91 |
| 15 | 1.1 | -0.28 | -67.47 | -49.24 | -48.85 |
| 16 | 1.11 | -0.31 | -65.15 | -49.26 | -48.85 |
| 17 | 1.12 | -0.35 | -67.43 | -49.39 | -48.98 |
| 18 | 1.08 | -0.35 | -72.76 | -49.44 | -49.2 |
| 19 | 1.44 | -0.58 | -71.25 | -50.56 | -49.94 |

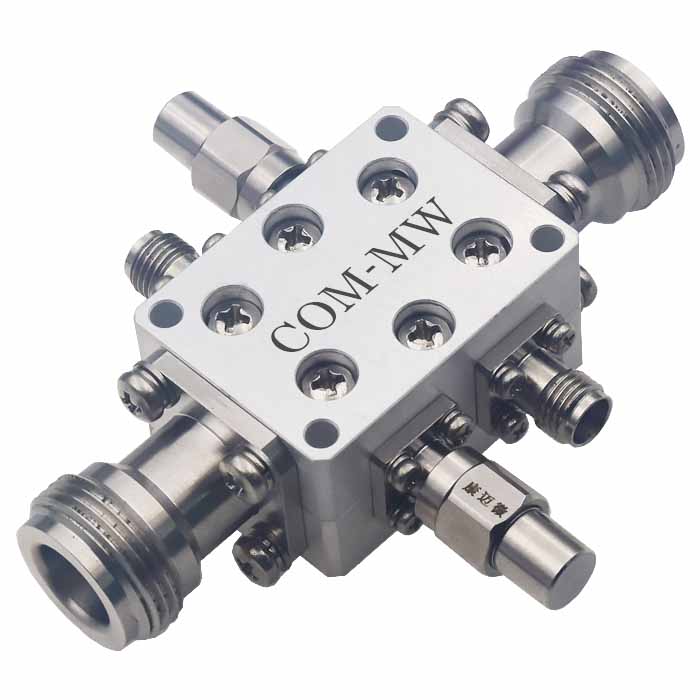

Reference picture

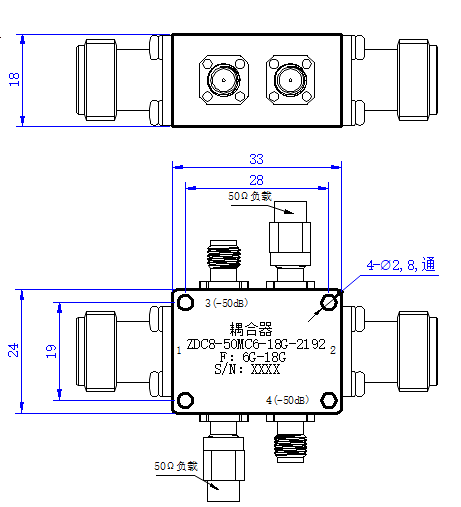

Configuration(mm)
Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
