Disk cone antenna ZPZ7-30-520-1577
Frequency30~520MHz, Gain0dBi, 2.5, Vertical polarization, N-K
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Disk cone antenna
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 520 | MHz |
| Gain | 0 | dBi | ||
| VSWR | 2.5 | |||
| Out-of-roundness | 3.0 | dB (Design assurance) | ||
| power | 200 | W (Design assurance) |
Other parameters
| Polarization | Vertical polarization |
| Connector | N-K |
| Outline size | φ 220 * 1160 * mm folding state |
| Estimated weight | 17Kg |
| Surface | Green |
| Work Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
| Other | Antenna can be folded |

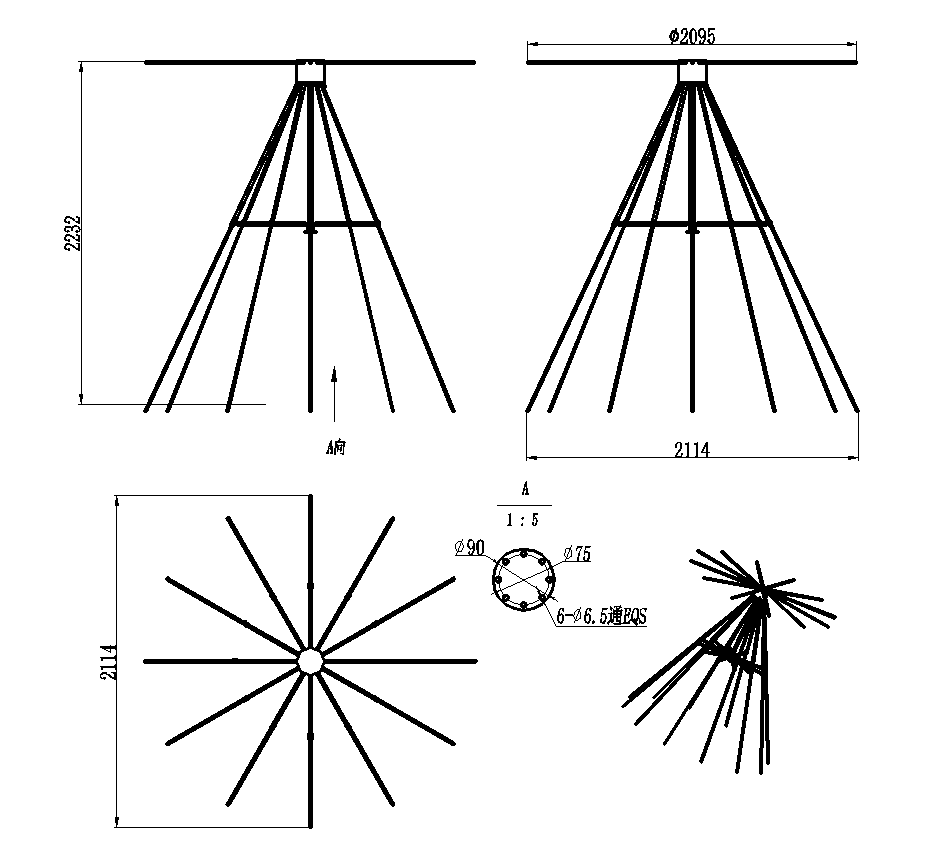

Configuration(mm)
Note
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.

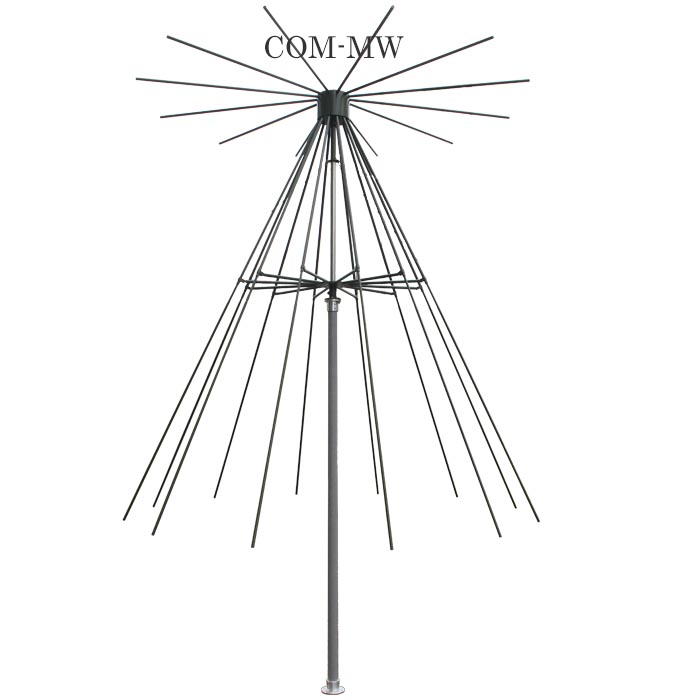

Reference picture

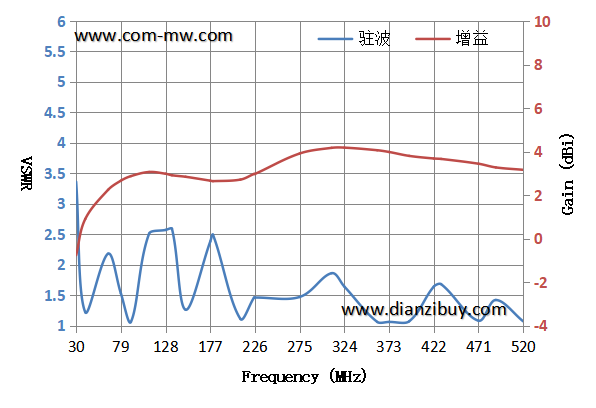

Typical test curve
