Dual polarized horn ZLB7-SJ22-33G-1652
Frequency24~31GHz, Gain20dBi, Dual-polarized, 2.92-K
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 24 | ~ | 31 | GHz |
| Gain | 20 | dBi | ||
| VSWR | 2 | |||
| 3dB Beamwidth | 15 | ° | ||
| Isolation | 30 | dB |
Other parameters
| Polarization | Dual-polarized |
| Connector | 2.92-K |
| Power Capacity | 20W Design assurance |
| Outline size | 143*52*95mm |
| Estimated weight | 0.5Kg |
| Surface | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |

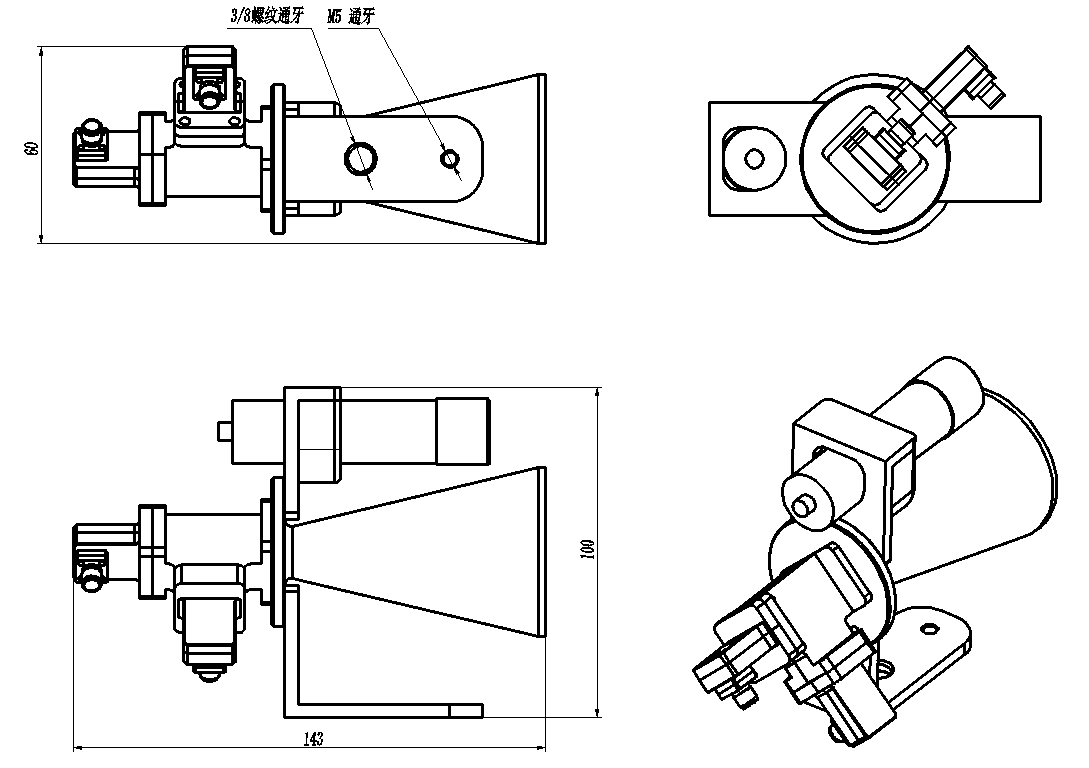

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

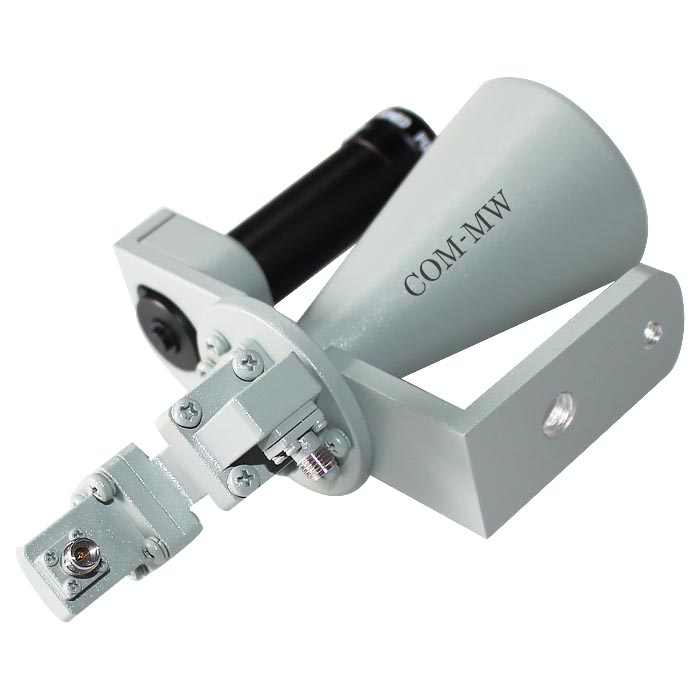

Reference picture
