Load 2.4-50JR-1W
In Stock 42
FrequencyDC~50GHz, Power Capacity1W, Impedance50Ω, 2.4-J
$ 45
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, Low VSWR
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 50 | GHz |
| VSWR | 1.25 |
Other parameters
| Power Capacity | 1W |
| Impedance | 50Ω |
| Connector | 2.4-J |
| Connector material | Housing 304 stainless steel |
| Operation Temp. | -40~+85℃ Design assurance |
Typical test data
| Items | Frequency(GHz) | S11 VSWR |
| 1 | 0.01 | 1.01 |
| 2 | 3.57 | 1.03 |
| 3 | 7.14 | 1.07 |
| 4 | 10.71 | 1.11 |
| 5 | 14.29 | 1.11 |
| 6 | 17.86 | 1.13 |
| 7 | 21.43 | 1.11 |
| 8 | 25 | 1.13 |
| 9 | 28.57 | 1.03 |
| 10 | 32.14 | 1.04 |
| 11 | 35.71 | 1.09 |
| 12 | 39.29 | 1.12 |
| 13 | 42.86 | 1.03 |
| 14 | 46.43 | 1.12 |
| 15 | 50 | 1.11 |

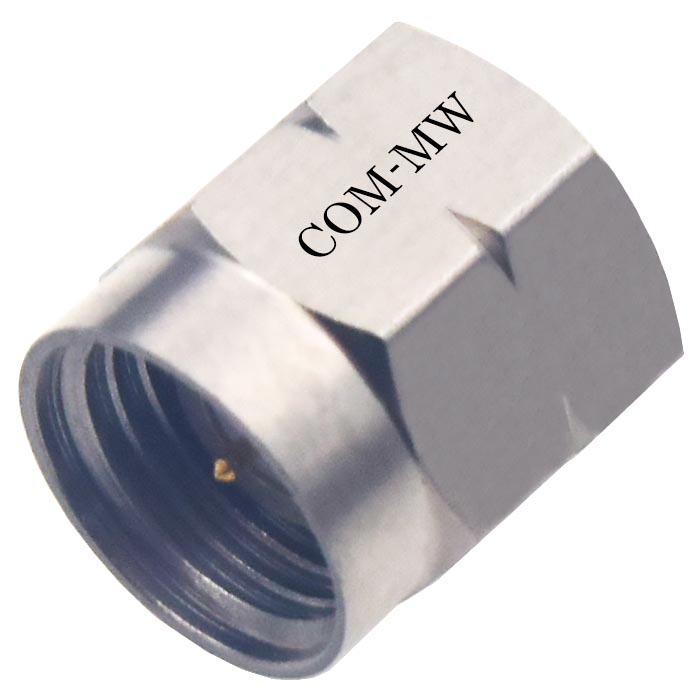

Reference picture

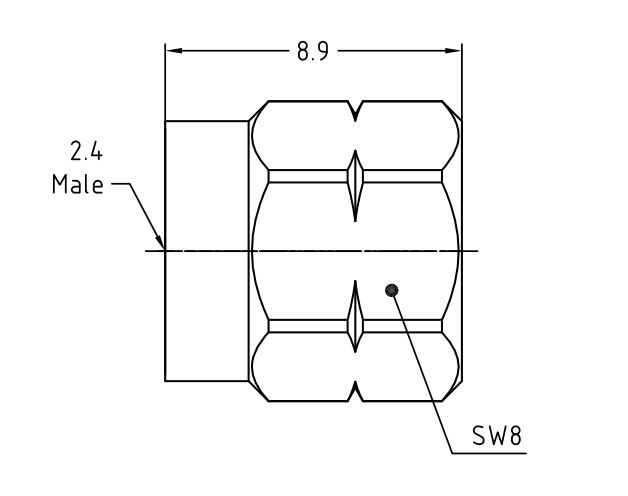

Configuration(mm)

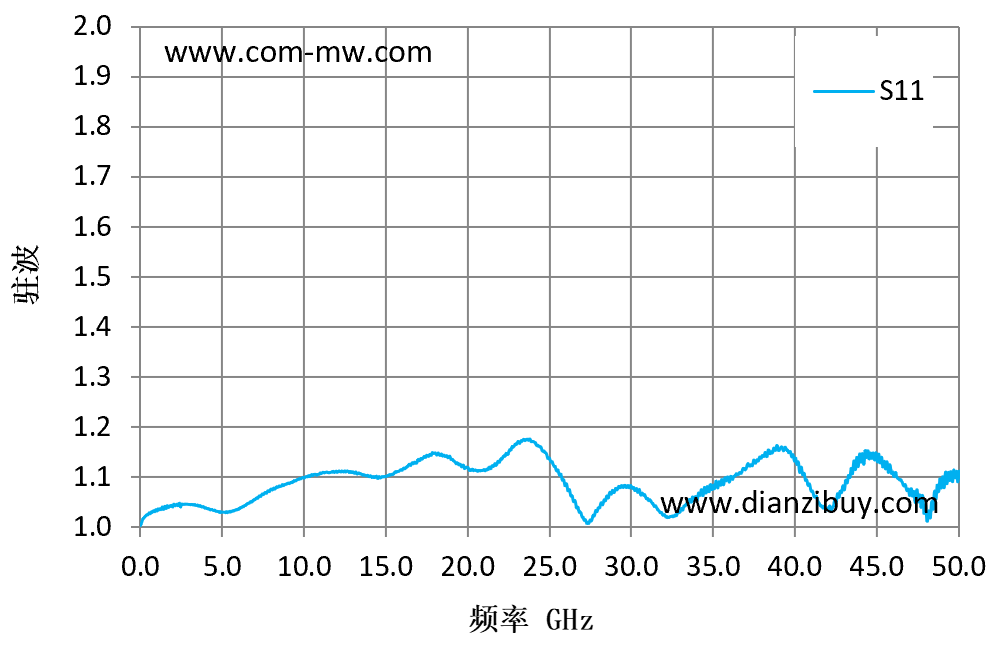

Typical test curve
Note
Heat dissipation space is needed for installing the load, far away from the equipment with large heat output
