Coupler ZDC8-10M6-40G-1862
In Stock 5
6~40GHz, Coupling10dB, 2.92-K, 10W
$ 185.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6 | ~ | 40 | GHz |
| IL | 1.8 | dB | ||
| Coupling | 8.2 | 10 | 11.8 | dB |
| Directivity | 10 | dB | ||
| Main line VSWR | 1.7 | |||
| Coupled line VSWR | 1.7 |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 10W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Input port | IN | --- |
| Output port | OUT | --- |
| Coupling port | C | --- |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S23 Coupling | S13 Directivity |
| 6 | 1.11 | 1.1 | -0.72 | -9.2 | -24.9 |
| 8.43 | 1.18 | 1.18 | -0.81 | -9.48 | -24.02 |
| 10.86 | 1.04 | 1.04 | -0.82 | -9.49 | -28.13 |
| 13.29 | 1.03 | 1.06 | -0.79 | -9.46 | -18.92 |
| 15.71 | 1.18 | 1.16 | -0.66 | -9.81 | -27.47 |
| 18.14 | 1.13 | 1.13 | -0.82 | -10.06 | -23.7 |
| 20.57 | 1.1 | 1.07 | -0.84 | -10.21 | -27.7 |
| 23 | 1.13 | 1.19 | -0.92 | -10.05 | -15.6 |
| 25.43 | 1.1 | 1.08 | -0.97 | -9.91 | -29.34 |
| 27.86 | 1.06 | 1.24 | -1.15 | -9.55 | -13.08 |
| 30.29 | 1.32 | 1.33 | -1.14 | -10.26 | -18.32 |
| 32.71 | 1.41 | 1.41 | -1.32 | -9.98 | -17.16 |
| 35.14 | 1.12 | 1.04 | -1.09 | -9.98 | -24.17 |
| 37.57 | 1.29 | 1.42 | -1.29 | -9.73 | -16.12 |
| 40 | 1.22 | 1.15 | -1.11 | -10.29 | -23.47 |

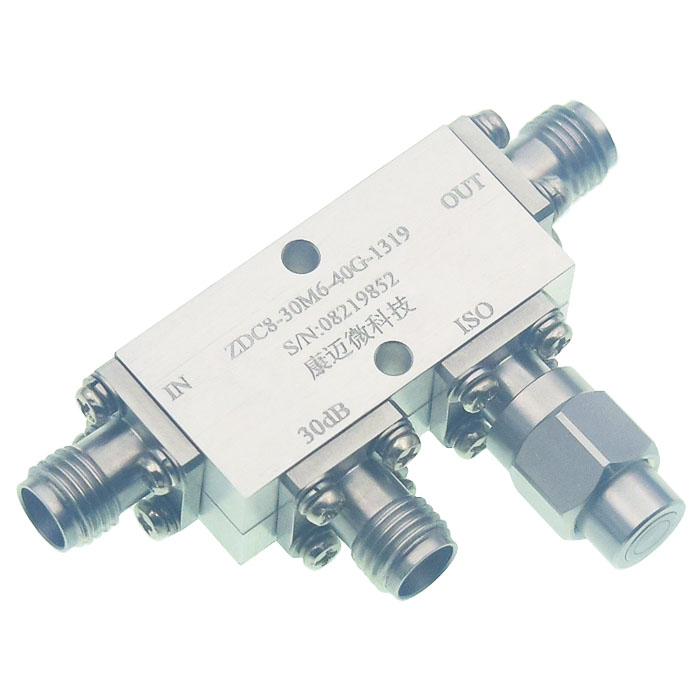

Reference picture

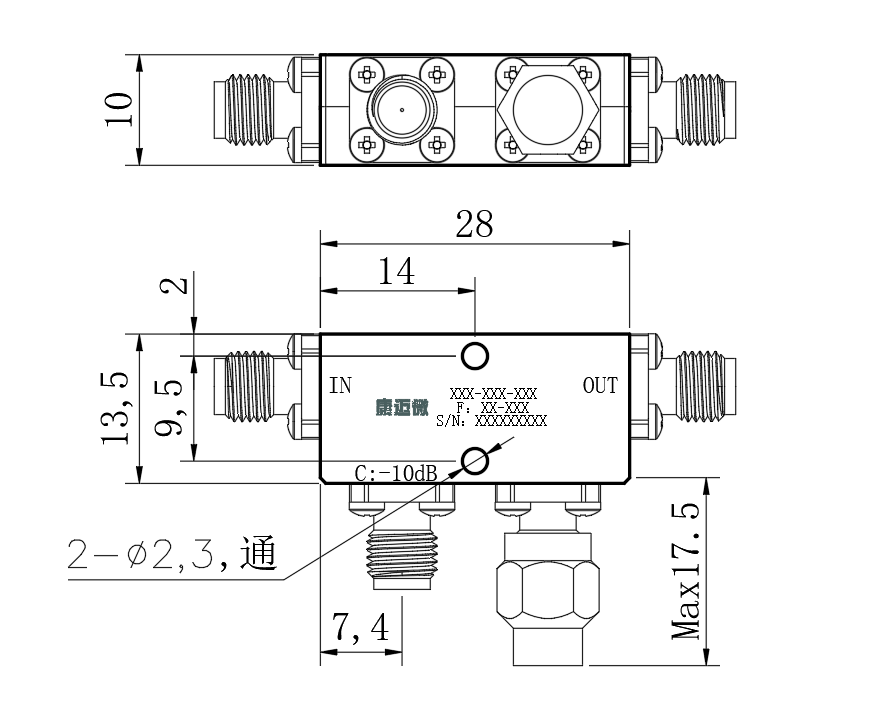

Configuration(mm)

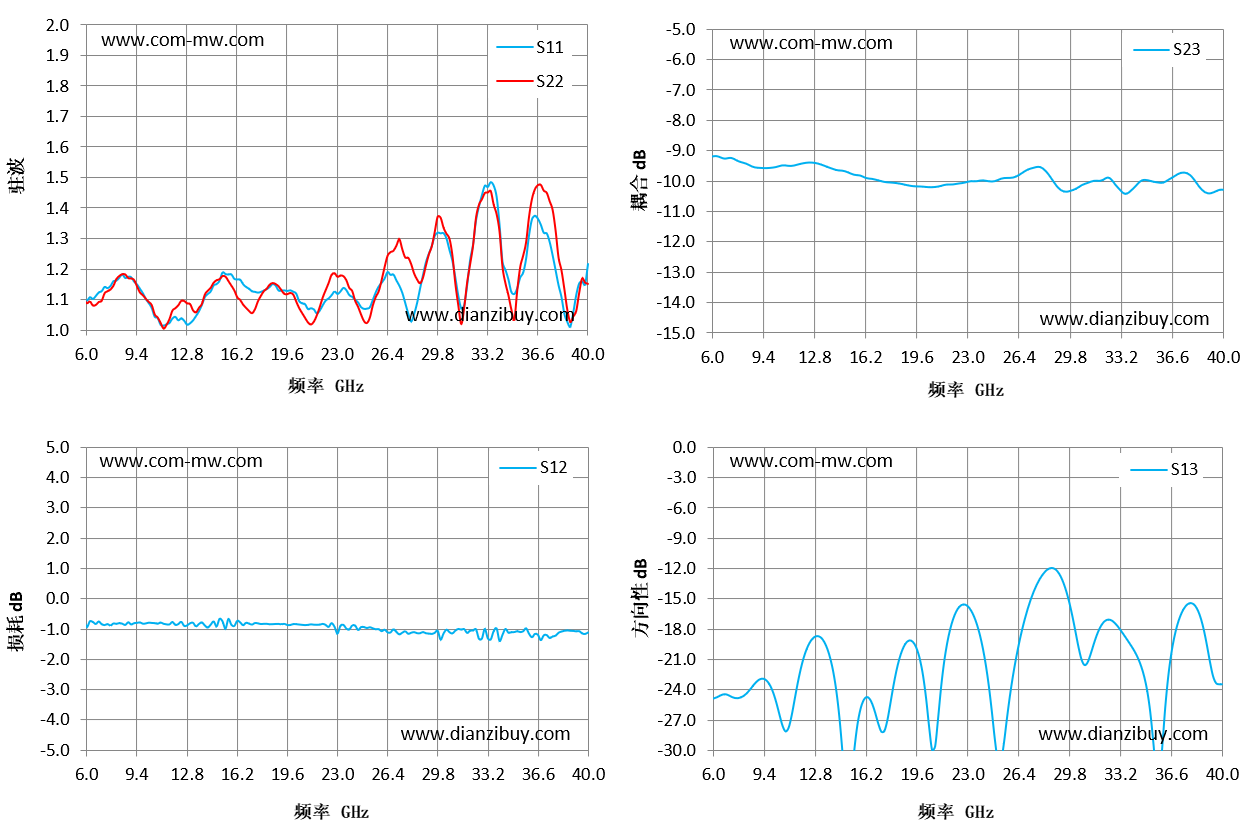

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
