Connector 2.92-KFK
In Stock 80
FrequencyDC~40GHz, 2.92-K & 2.92-K, Stainless steel
$ 13.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Low VSWR, high cost-effectiveness.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 40 | GHz |
| IL | 0.2 | dB | ||
| VSWR | 1.15 |
Other parameters
| Impedance | 50Ω |
| Connector | 2.92-K & 2.92-K |
| Surface | Passivation of stainless steel |
| Product shell material | Stainless steel SUS303F |
| Inner conductor | Beryllium Copper Gold Plated |
| Spanning | PEI1000 |
| Work Temp. | -55~+125℃ Design assurance |
| Other | Executive Standard GJB680A-2009 |

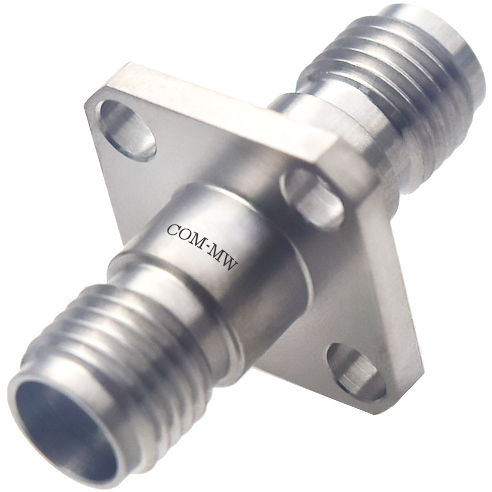

Reference picture

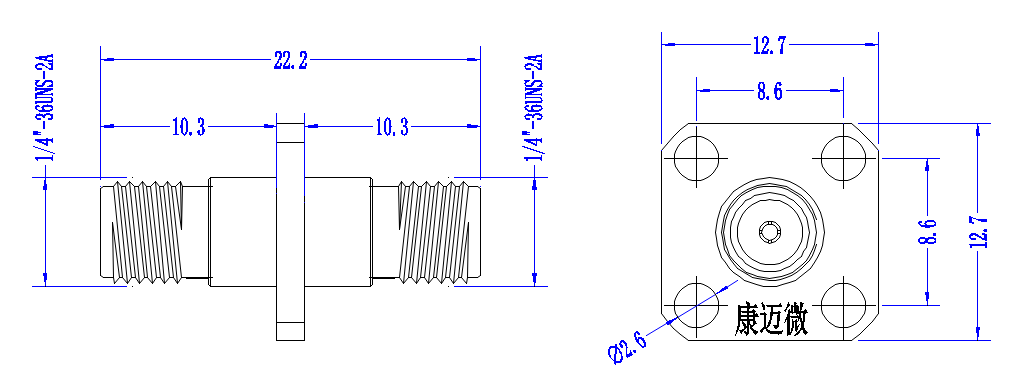

Configuration(mm)
